MD.24.3.2

MD.24.3.2

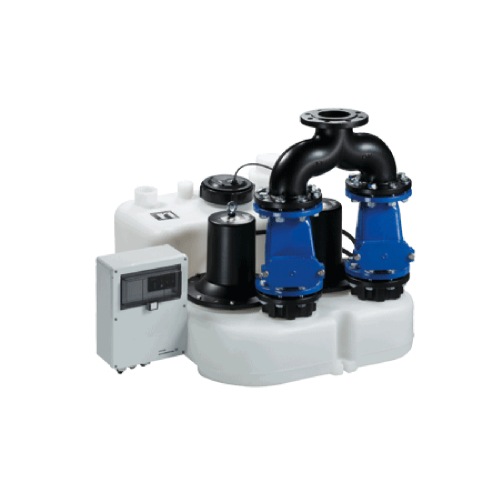

Grundfos Multilift is designed specifically for the collection and pumping of wastewater and sewage from wastewater pipes and water closets situated below sewer level. The Multilift station lifts the wastewater and carries it forward to the sewerage. Fitted with a vertical discharge port, the low-noise Multilift is gas- and odour-proof as well as watertight.

Supplied as complete a unit ready for installation, the Multilift consist of a fully integrated collecting tank with pump(s) directly coupled to a 3-phase submersible motor. An LCD109controller is supplied with the unit.

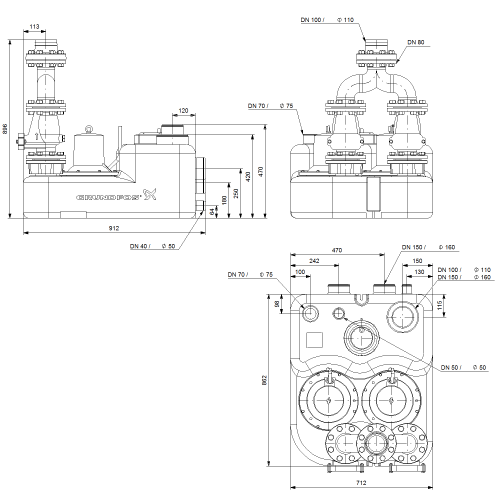

The fully integrated collecting tank has all necessary ports for the connection of inlet pipe, discharge pipe, vent pipe and a manually operated diaphragm pump available as an optional accessory.

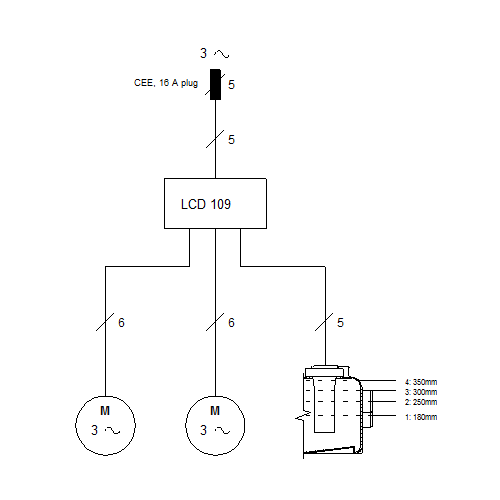

The controller offer thermal motor protection and monitoring of pump operation. The thermal motor protection consists of thermal switches. A motor starter, if required, must be ordered separately.
