UPE 100-120 FZ

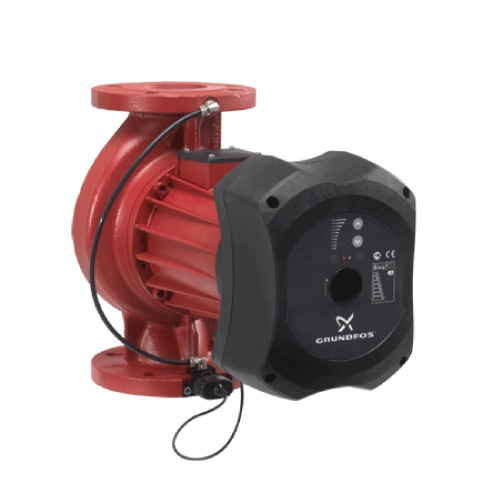

UPE_100-120_FZ The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible.

The pump is characterized by: * Pump controller integrated in the terminal box. * Carbon radial bearings. * Ceramic axial bearing. * Stainless steel rotor can and rotor cladding. * Aluminium alloy stator housing. * Чугунpump housing. * Stator with built-in thermal switch.

The motor is a 1-phase motor. The motor does not require external motor protection.

UPE Series 2000 pumps feature automatic control of differential pressure through build-in sensor. 3 control modes are available: * Proportional pressure. * Constant pressure. * Constant curve.
